A bioshelter is a new, more complex form of greenhouse that can meet important basic human needs. Bioshelters imagine a new synthesis between people and their local ecology: an early exploration in weaving together the sun, wind, biology and architecture on behalf of humanity. The architecture protects the ecosystem inside from extremes of wind and cold, and absorbs the energy from sunlight that causes plants to grow and heats the air.

The ecosystem includes soil life, diverse plants, fish, insects, frogs, and people. Food is produced as nutrients cycle through plants and soil. Water is captured, stored, warmed and directed to crops and ponds.

Bioshelters of the future

Bioshelter architecture can go many promising directions, from year-round food production, ecological housing for people, purification of water and wastes, and networks of structures for travel and transport. Modular, linear bioshelters could be mass-produced and rapidly implemented. A sustainable society requires sustainable life support systems. Bioshelters would be an important step in that direction.

Bioshelters: the next generation

An architectural concept being developed by Earle Barnhart envisions a network of modular, linear, arched greenhouses, an elaboration of the linear pillow bioshelter by Malcolm Wells for New Alchemy. These designs are an attempt to combine innovative technology with innovative ecology to create a new habitat for humans. It would result in a society that is decentralized but also integrally connected.

Computer-modelling of bioshelters showed that a Quonset shape would best balance light input and conservation of heat. In the slideshow, we show arched trusses to support the weight of water tubes and water pillows that store rainwater for aquaculture and irrigation.

This slideshow requires JavaScript.

Bioshelters provide inside space for agriculture, aquaculture, transport, housing, rivers of water in solar ponds moving from place to place. The inside ecology is a combination of soil life, plant life, fish ponds, insects, frogs, and people. It includes many essential ecological processes, such as solar energy capture, rainwater use, and nutrient recycling.

The bioshelter network provides sheltered pedestrian corridors and transport by bicycles, human-powered and electric vehicles. Housing for people is integrated into the bioshelter, as simple “perched apartments”, or attached buildings, creating a modern version of the traditional “long house” used historically by many cultures. Human nutrient wastes are recovered and recycled safely back to agricultural and natural ecosystems. Not shown in detail, but implicit, is a solar electricity network that powers everything and allows various scales of mini-grids that are resilient to disruptions.

Bioshelters integrate naturally into a surrounding permaculture landscape. An important feature is local production of food, water and environmental services that would greatly reduce the greenhouse gas emissions responsible for climate change. It is most efficient to grow food near to where it is consumed and to power homes directly and simply with local solar resources.

Bioshelters are innovative technology and innovative ecology at a human scale. They offer a strategy for survival in an ecological end-game. In this future, your house provides your basic human needs– healthy food, clean water, clean air, energy, waste-nutrient recycling. and other ecological services. The life support and actions of people are integrated with the biosphere of the Earth.

Next-generation bioshelters respond to permaculture visionary Bill Mollison‘s concerns:

“There will need to be a global response to environmental refugees, especially from atoll, low coasts, estuaries, and coastal cities (due to sea level rise).  These will need to be housed in new, well-designed, low-energy inland villages or self-reliant settlements,  minimizing transport and fossil fuel uses”.

Permaculture, 1988

They also meet Buckminister Fuller‘s criteria for powerful design solutions:

  • Visionary – put forth an original idea or synthesize existing ideas into a new
    strategy that creatively addresses a critical need
  • Comprehensive – apply a “whole-systems” approach to the design and
    implementation process; aim to address multiple goals,
    requirements and conditions in a holistic way
  • Anticipatory – factor in critical future trends and needs as well as the
    projected impacts of implementation in the short and long term
  • Ecologically Responsible – reflect nature’s underlying principles while
    enhancing the ability for natural systems to regenerate
  • Feasible – rely on current technology, existing resources and a solid team
    capable of implementing the project
  • Verifiable – able to withstand rigorous testing and make authentic claims
    and that have the potential to play a significant role in the
    transition to an equitable and sustainable future for all





Water Tubes: The Holy Grail of Thermal Mass for Solar Greenhouses

Click here for a downloadable PDF of this report by Earle Barnhart

“Alchemical processes depend on the maintenance of steady temperatures, and much experience is needed in the design of furnaces to precisely regulate the heat and draft …”

-quote from Old Alchemy

The air in a greenhouse on a sunny day will get hotter and hotter, and usually it is vented out of the greenhouse and wasted.

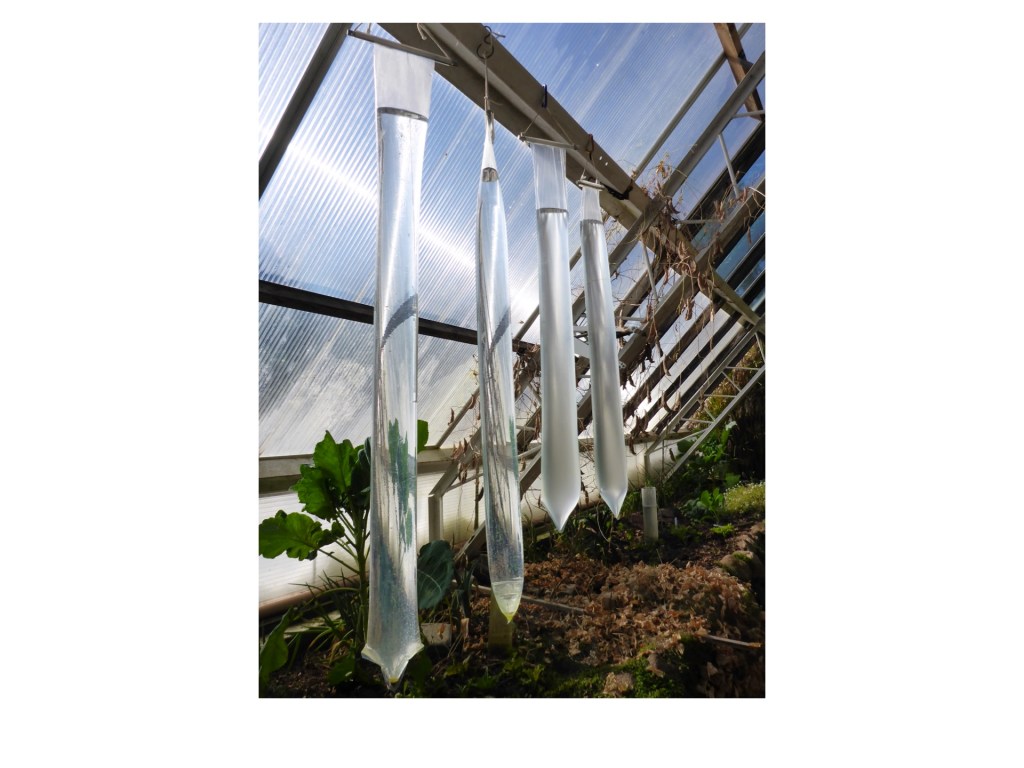

A transparent tube of water hanging in the greenhouse will absorb the heat from the hot air and store it as warm water. Later at night when the greenhouse cools, heat is released from the warm water and heats the greenhouse air. Water is the best material to store heat; it holds the most heat for its volume.

When warm moist air cools on a cold water tube, drops of condensation will form on the surface. Condensation will be visible while absorbing heat. At night, it evaporates off and the tube is clear.

Water tubes are:

  • automatic; the air and heat move naturally
  • silent; no fans, no power, no fuel, no burners
  • simple, no mechanical or digital controls
  • you can see them working; water condenses on the outside when it is actively storing heat
  • more attractive than ducts and vents





During the daytime, the process works as follows:

  1. warm air touches tube
  2. heat moves into water inside
  3. warmest water rises to top
  4. cooled air sinks downward

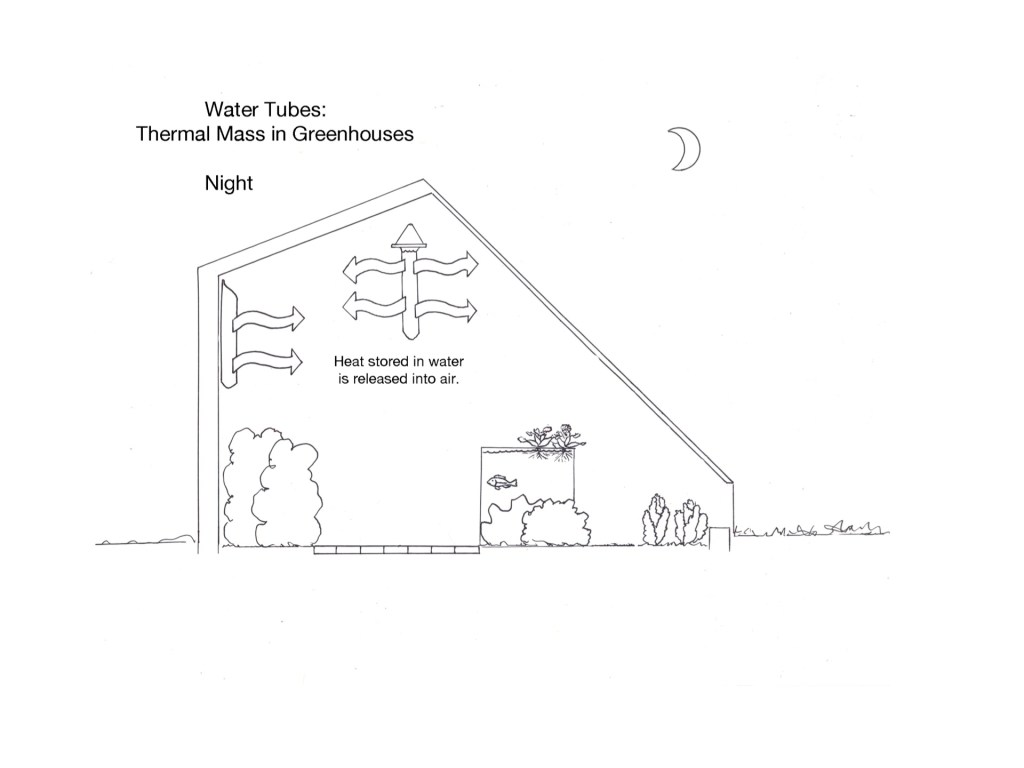

During the night, the now-warm tube radiates heat and the air touching tube becomes warm, rising upward.

The water at the top of this tube is very warm; too warm to absorb heat and form condensation.

Here are some notes from March 7-8, 2010:



On a sunny day, hot air will rise to the top of a greenhouse. On this sunny day, the air at the peak of the greenhouse reached 115 degrees F. around 3 o’clock. Water tubes absorbed heat all day, starting at 52 degrees and ending at 103 degrees around 3 o’clock. The sun went down, the greenhouse cooled overnight, and heat moved from the warm tube to the air. By morning, all the heat in the water was released back into the greenhouse air.

                             NIGHT

                                         DAY

Thermometer in tube: water 100 degrees F.

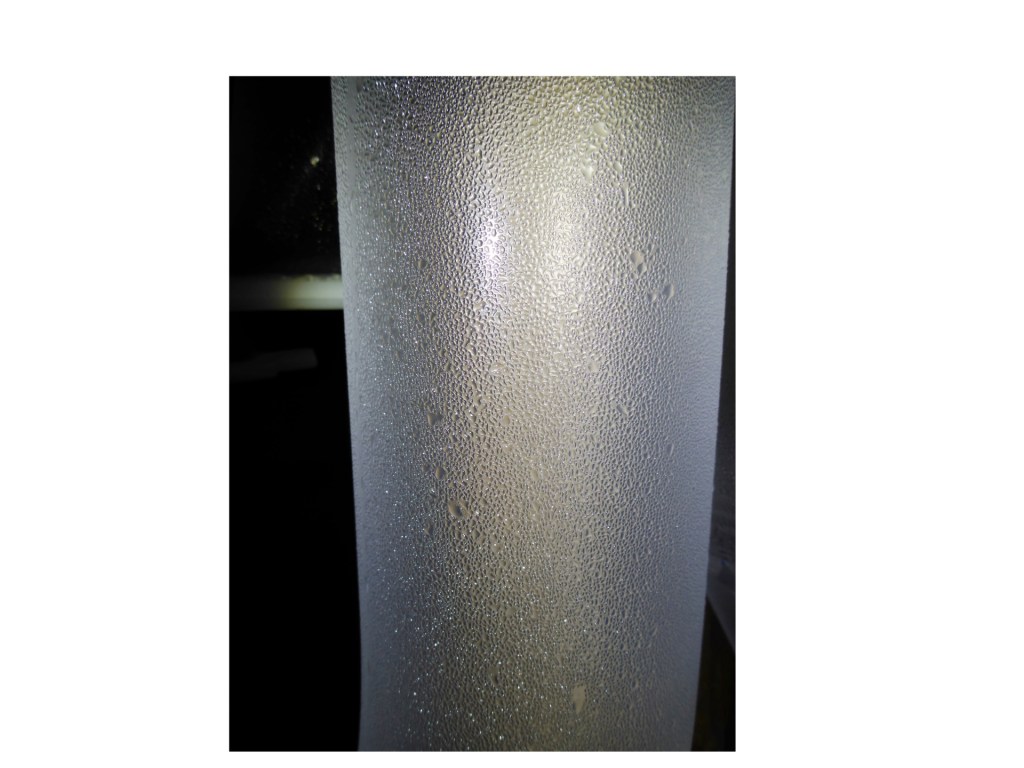

When warm moist air cools on a cold water tube, drops of condensation will form on the surface. When absorbing heat, the condensation will stay visible.

When heat is released at night, it evaporates off and the tube is clear. The water at the top of this tube is very warm and is not cooling any air.

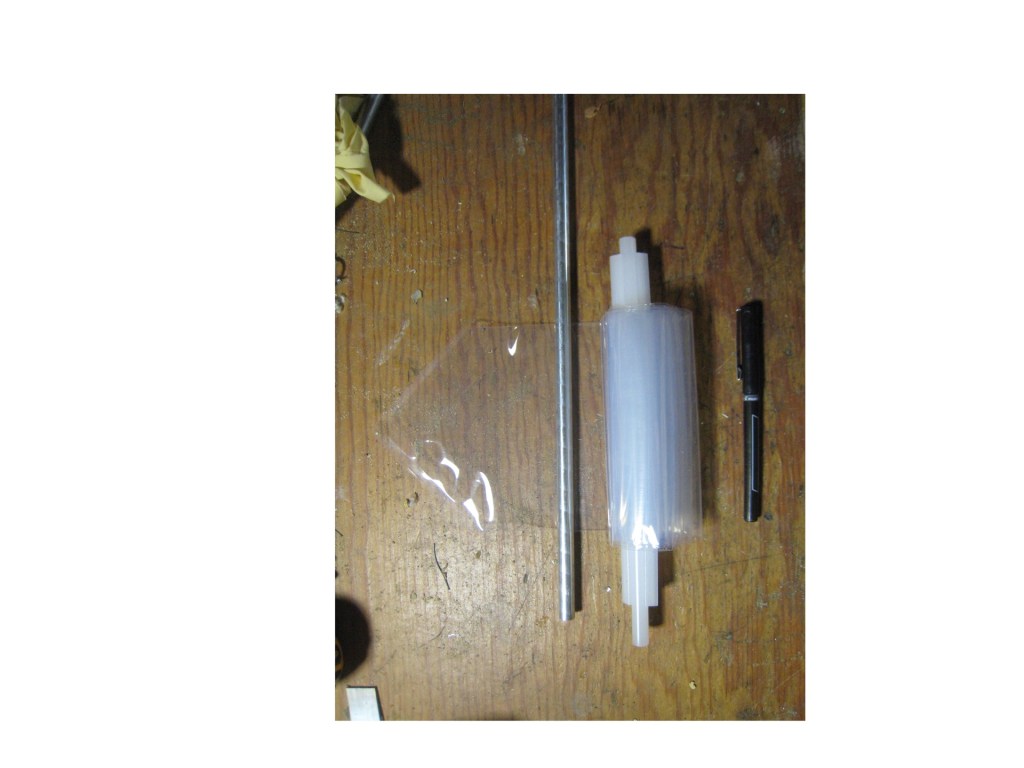

Trial and Error

Using 2 polyethylene tubes 2″ and 4″ diameter, the water tubes will fail in a year or two.

Using 2 Teflon tubes, they remained inert and clear and stable shape.

Using 2 nylon tubes, we had a catastrophic failure every 3 months with cloudy water and bulges in the bottom.

Plastic rods bend and distort; so does wood; aluminum rods are better.

We found that 4 inch diameter tubes are very heavy and hard to handle.

Sealed bottoms are necessary, simple tying and clamps will leak

Hanging in freezing air, eventually the water in a tube will freeze.   Water expands about 9% in volume when frozen.









Water tubes are more effective if they are placed high in a greenhouse and distributed in many places.

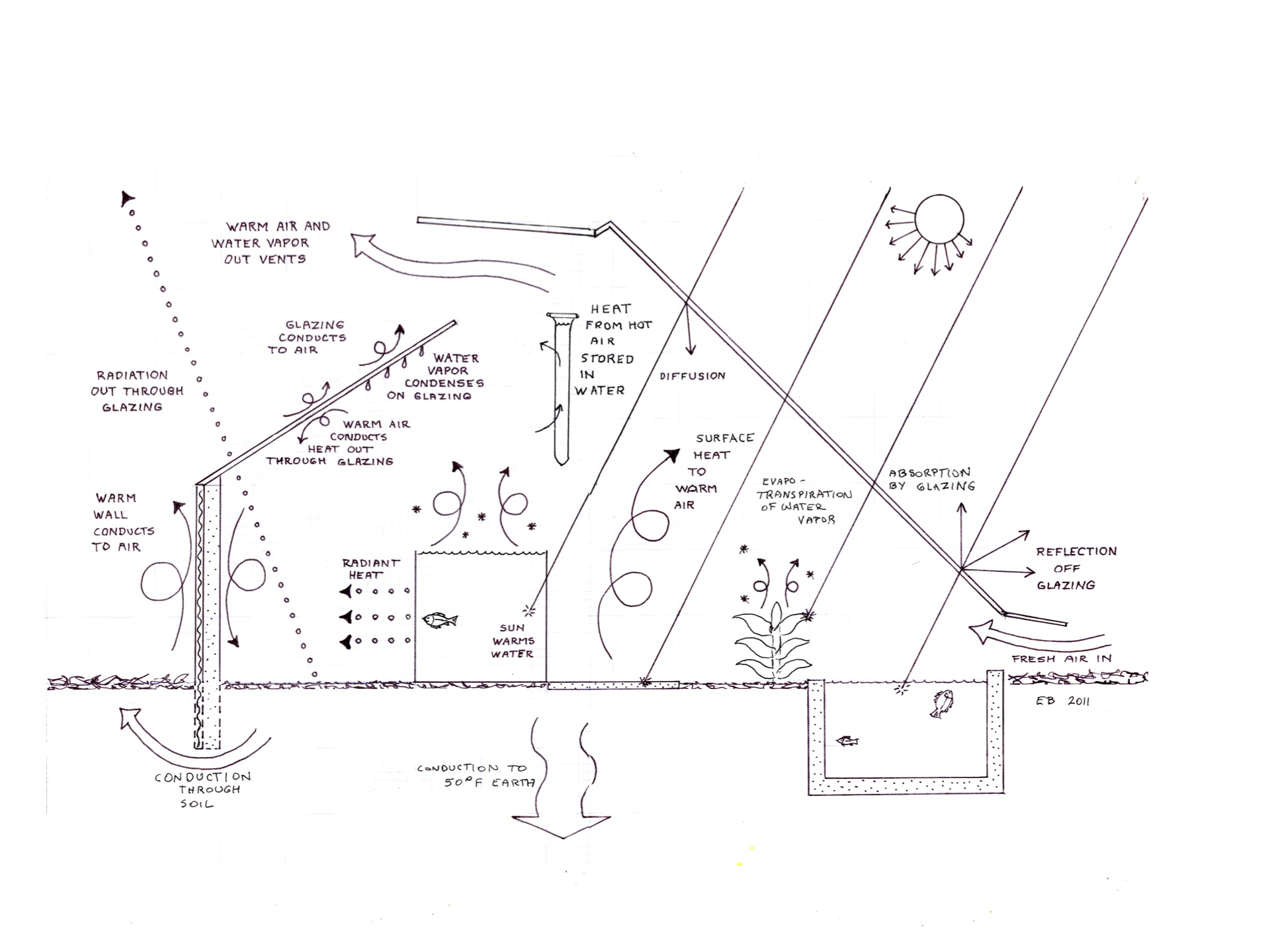

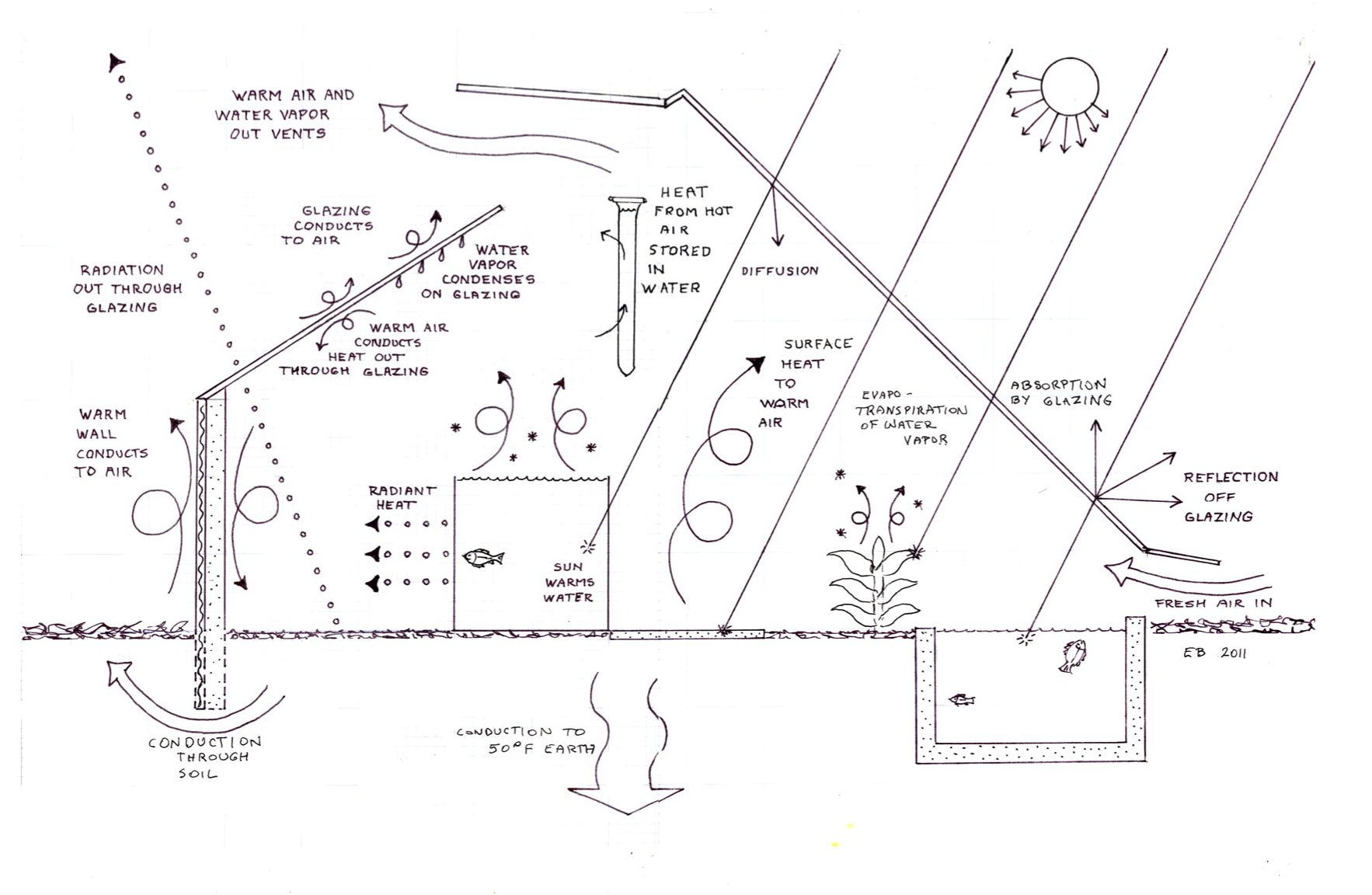

Other energy flows

Other thermal mass

Plant leaves are 95% water; the water in leaves also store heat during the day and release it at night.







Solar fish ponds hold 700 gallons. They warm up 5 degrees F on a sunny day, and can release heat for several sunless days while slowly cooling .

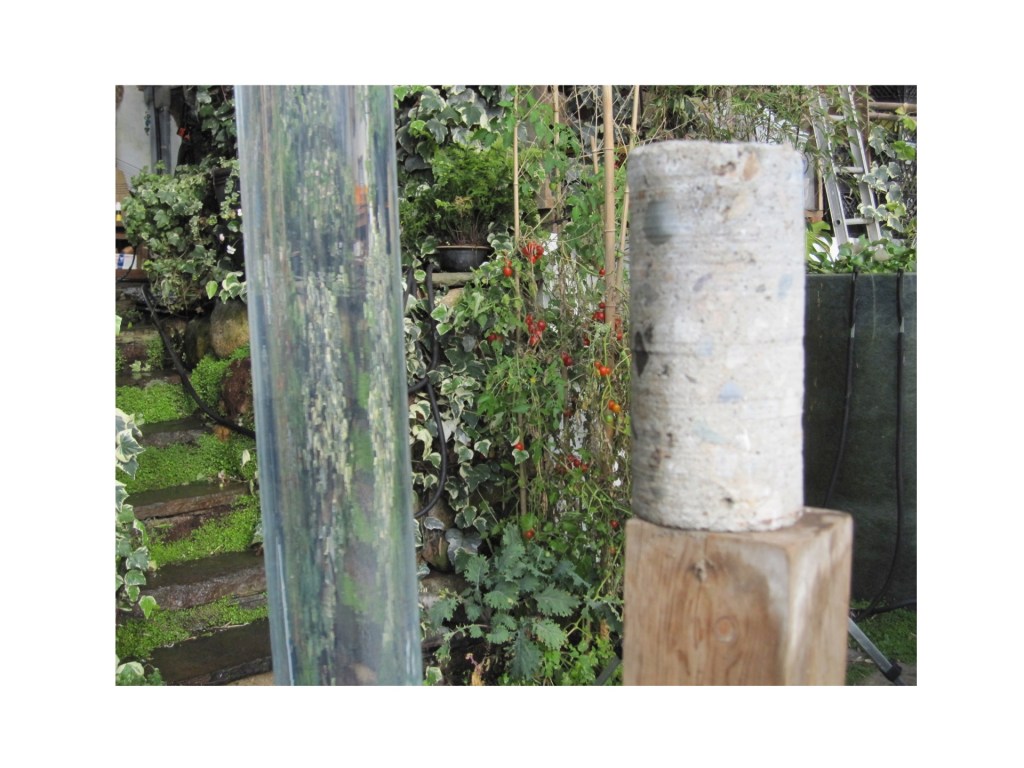

Water stores twice as much heat as cement.









Bottles of water work well, are cheap, and can last years.



Why Not Black?

Plants in a greenhouse need the maximum amount of light possible to photosynthesize and grow.

A clear tube in front of a plant will let light go through and hit the plant. A clear tube will only only absorb heat from nearby air.

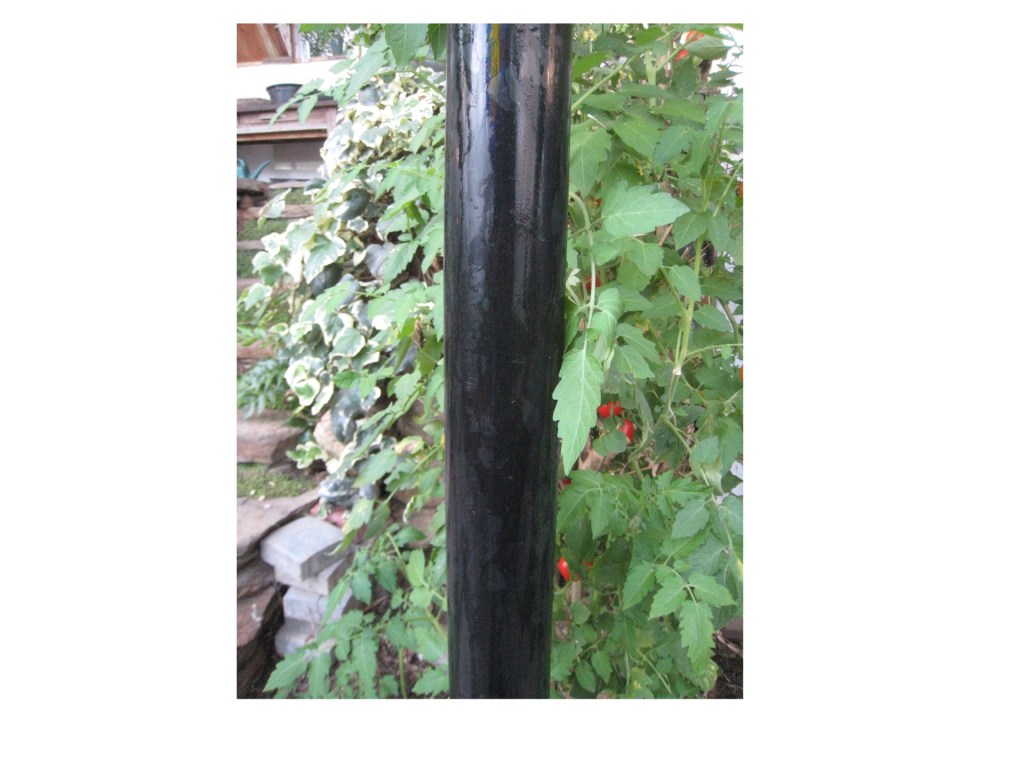

A black tube in front of a plant will absorb light, leaving less light will hit the plant. A black tube will absorb both heat from nearby air and light that strikes it, which turns into heat. A black tube will get hotter than a clear tube.



Black containers of water are useful to absorb light that will not strike a plant, such as at the north wall. On sunny days black metal drums of water can store large amounts of heat.

Each drum weighs 400 pounds. Stacked drums are dangerously heavy if not secure.

For people, black walls can be slightly depressing to look at and spend time near.
